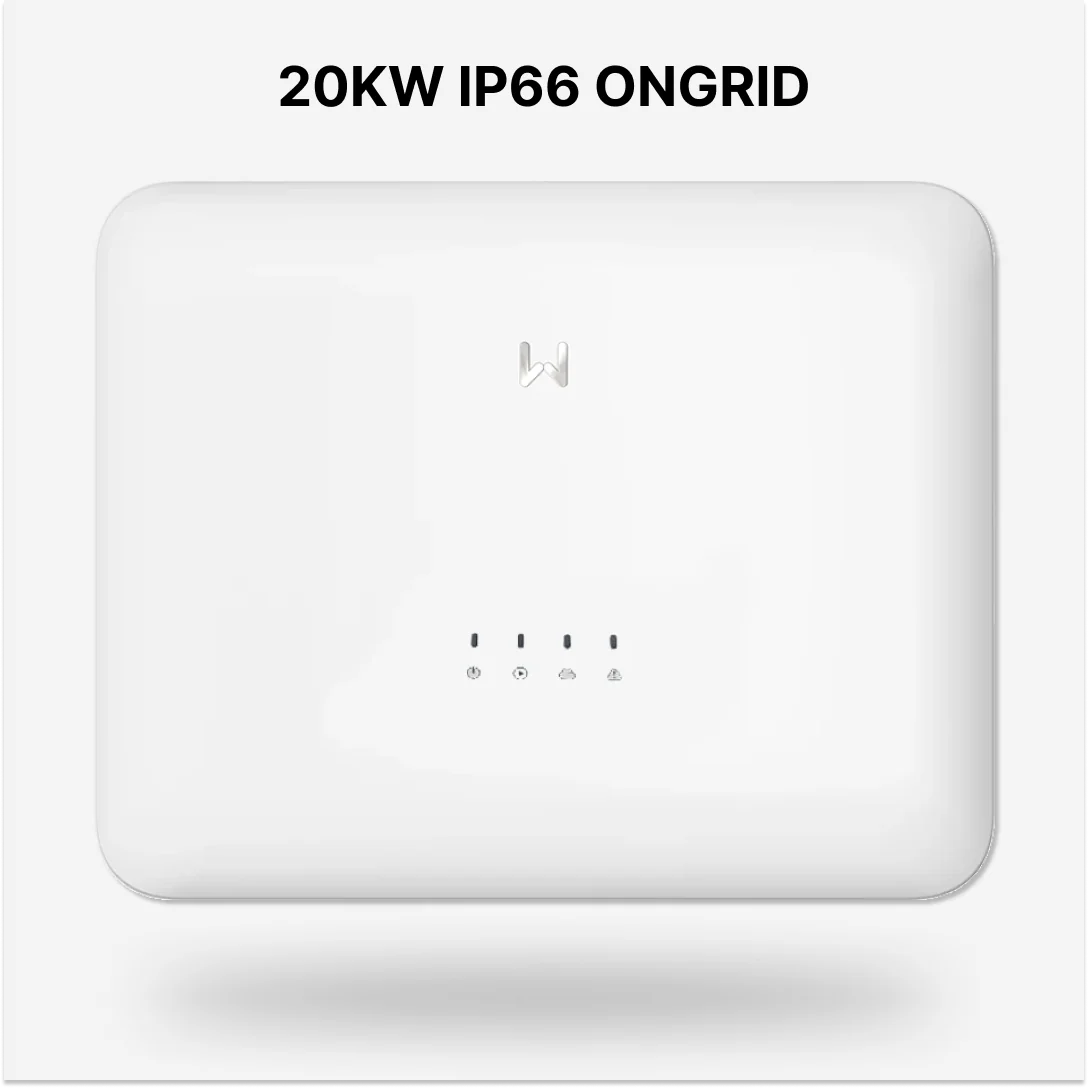

GoodWe 20KW Ongrid Solar Inverter

GoodWe GW20K-SDT-30 G3 – 20kW Three-Phase On-Grid Inverter

The GoodWe GW20K-SDT-30 G3 is a next-generation three-phase on-grid inverter designed to deliver reliable and efficient power for residential and small commercial solar systems. With 150% DC oversizing and 110% AC overloading, it ensures maximum energy yield while maintaining stable performance, even under heavy load conditions.

Compact and lightweight, this inverter is built for easy installation and long-term durability. It features a wide MPPT voltage range (140V–1000V) for flexible solar array designs, along with advanced safety functions to protect both the system and connected appliances.

Key Features

• Wide Power Range: Supports installations from 8kW up to 30kW

• High Capacity Utilization: 150% DC oversizing and 110% AC overloading

• Nominal Power: 20kW with a maximum output of 22kW

• Three-Phase Design: Optimized for residential blocks and small businesses

• Lightweight Build: Simplifies handling and installation

• Flexible Operation: Adjustable power factor (0.8 leading to 0.8 lagging)

Advanced Safety Features

• PV String Monitoring: Real-time performance tracking

• Anti-Islanding Protection: Safe disconnection during grid failures

• Reverse Polarity Protection: Prevents damage from incorrect wiring

• Residual Current Monitoring (RCM): Detects leakage to improve system safety

Best For

• Large residential solar projects

• Small commercial applications with three-phase demand

• Systems needing high efficiency with scalable performance

• Installations in diverse environments requiring robust protection and safety

Technical Specifications
