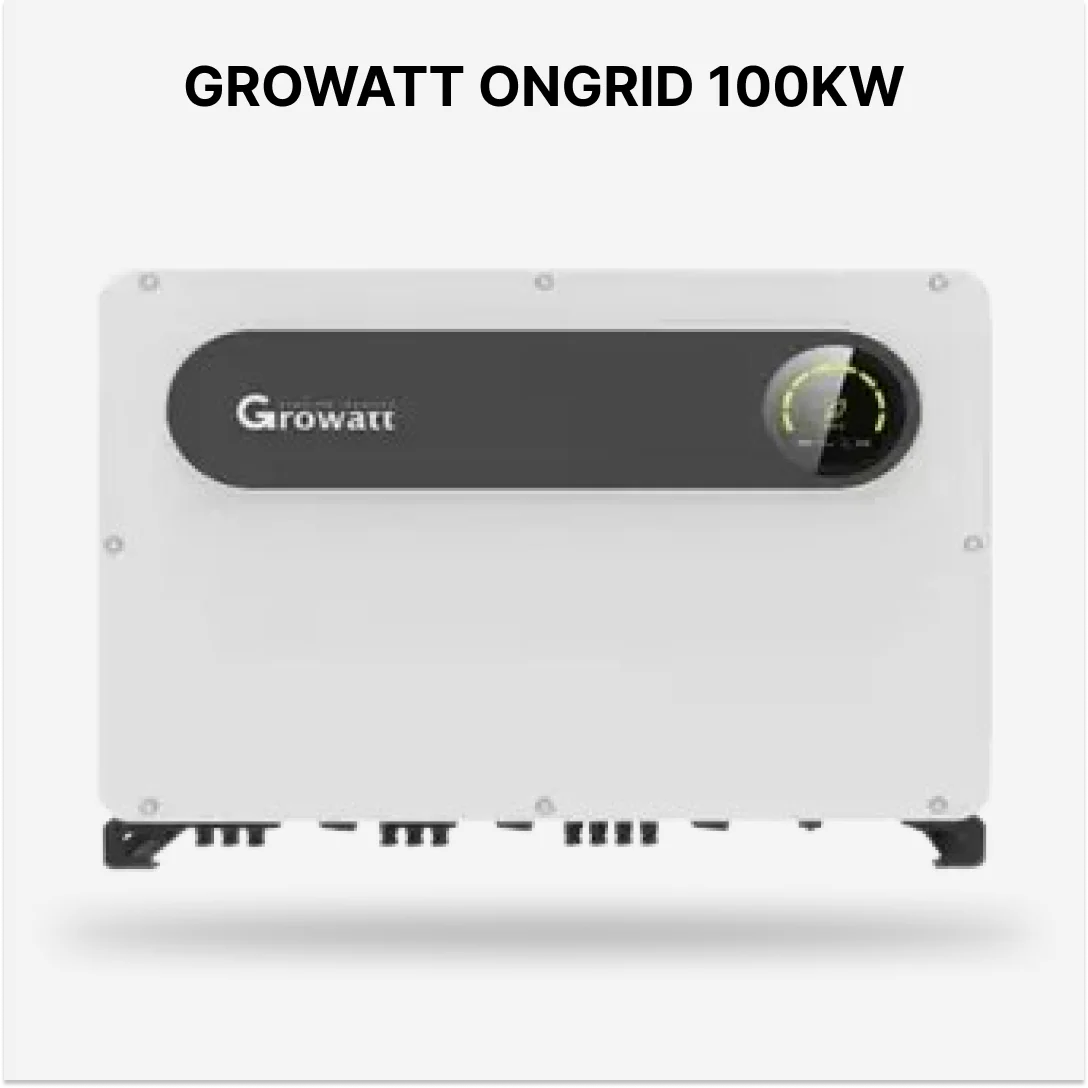

Growatt 100KW OnGrid Solar Inverter
Growatt MAX 100KTL3-X LV is a 100kW three-phase on-grid inverter with 6/7 MPPTs, 98.4% efficiency, IP66 protection, and smart monitoring — built for large commercial and industrial solar projects.
₨1,015,000.00
100 in stock
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Growatt MAX 100KTL3-X LV
100kW Three-Phase On-Grid Industrial Solar Inverter
The Growatt MAX 100KTL3-X LV is a high-capacity three-phase inverter purpose-built for large-scale commercial and industrial solar systems. Delivering up to 100kW of nominal AC power, this inverter integrates 6/7 MPPT trackers, advanced safety mechanisms, and intelligent monitoring to maximize system performance, reliability, and energy yield.
With a maximum efficiency of 98.4%, IP66-rated protection, and smart air cooling, it ensures stable and durable operation even under harsh environmental conditions. Its modular multi-MPPT design allows flexible PV configurations across multiple orientations and shading profiles, making it ideal for complex industrial deployments.
Key Features
High Output Power – 100,000W nominal AC power with 98.4% efficiency for maximum ROI.
6/7 MPPT Trackers – Independent optimization for multiple PV strings in varied orientations.
Smart Connectivity – RS485, USB, PLC, WiFi, GPRS, and 4G for remote monitoring & control.
Industrial-Grade Durability – IP66 protection ensures dustproof and waterproof outdoor operation.
Advanced Safety – Integrated Type II SPD (DC & AC), optional AFCI, and anti-PID function.
Smart Cooling System – Intelligent air cooling keeps the system stable under heavy load.
Long-Term Reliability – Compact, easy-to-install design with a 10-year manufacturer warranty.
Ideal Applications
Utility-scale industrial solar power plants
Commercial rooftops with multi-string configurations
Large on-grid solar farms
Smart projects with multi-MPPT PV layouts
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Growatt MAX-100KTL3-X LV |
| Rated AC Output Power | 100,000 W (100 kW) |
| Max AC Apparent Power | ~110,000 VA |
| Number of MPPT Trackers | 10 |
| MPPT Voltage Range | 180 – 1,000 V DC |
| Max DC Input Voltage | 1,100 V DC |
| Nominal AC Voltage | 400 V three-phase (230/400 V) |
| AC Grid Frequency | 50 / 60 Hz |
| Max AC Output Current | ~158.8 A @ 400 V |
| Maximum Efficiency | ~98.8% |
| Ingress Protection Rating | IP66 |
| Cooling Method | Smart air cooling (transformerless design) |
| Operating Temperature Range | -30 °C to +60 °C |
| Dimensions (W × H × D) | ~970 × 640 × 345 mm |
| Weight | ~84 kg |
| Warranty | 5 years (with extension options) |
