Growatt 10KW IP65 Hybrid Solar Inverter
Growatt SPH 10000TL-HU is a 10kW single-phase hybrid inverter with dual MPPT, 98.2% efficiency, 48V battery support, IP65 protection, and smart WiFi/Modbus monitoring — ideal for solar + storage systems.
₨385,000.00
100 in stock
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product

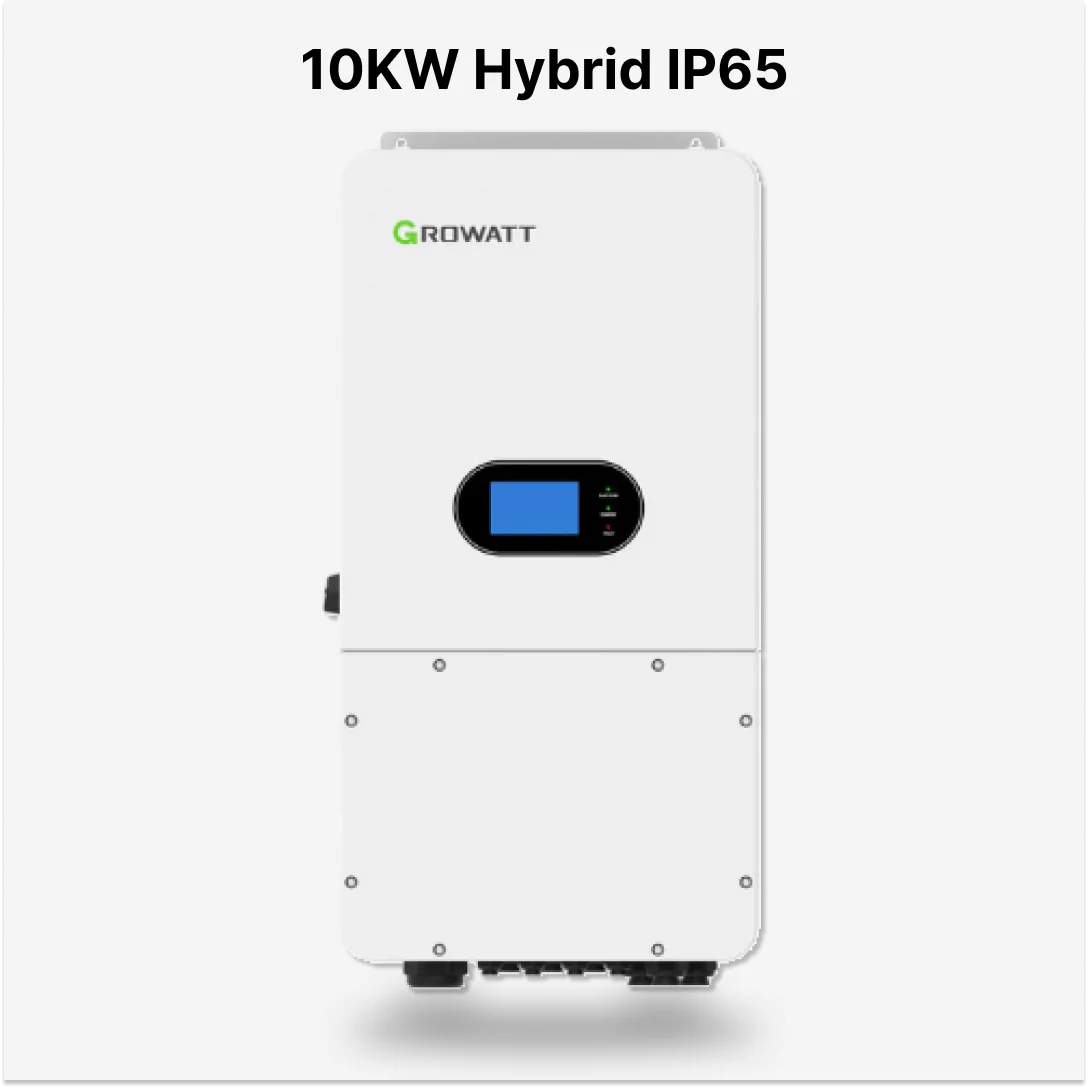

Growatt SPH 10000TL-HU
10kW Single-Phase Hybrid Inverter (Grid + Battery Support)
The Growatt SPH 10000TL-HU is a high-performance hybrid inverter designed for residential and small commercial solar systems that require both grid-tied efficiency and battery backup. With flexible battery compatibility, dual MPPT tracking, and advanced monitoring, it ensures maximum energy independence and reliable performance.
Key Features
Hybrid Power – Seamlessly integrates solar, grid, and battery for continuous power supply.
Rated Power – 10,000W single-phase output, ideal for large homes and small businesses.
Battery Ready – Supports both lithium-ion and lead-acid batteries with a 48V battery voltage.
High Efficiency – Up to 98.2% conversion efficiency for optimal system performance.
Dual MPPT – Maximizes solar energy harvest from different panel orientations.
Durable Design – IP65-rated enclosure, dustproof and waterproof for outdoor use.
Smart Monitoring – Real-time performance tracking via WiFi, RS485, and Modbus.
data-start=”1231″ data-end=”1262″>Technical Specifications
| Specification | Details |
|---|---|
| Rated Output Power | 10,000 W (10 kW) |
| Battery Voltage | 48 V |
| Maximum PV Input Power | 15,000 W |
| Maximum DC Input Voltage | 550 V |
| MPPT Channels | 2 |
| AC Output Voltage | 230 V (single-phase) or 400 V (three-phase) |
| Maximum AC Output Current | 43.5 A (single-phase) or 21.7 A (three-phase) |
| Maximum Efficiency | 97.5% |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Communication Interfaces | Wi-Fi, RS485, Modbus |
| Operating Temperature Range | –25 °C to +60 °C |
| Warranty | Typically 5 years (extendable) |
