GROWATT 10KW OnGrid Solar Inverter

DOWNLOAD PRODUCT DATASHEET

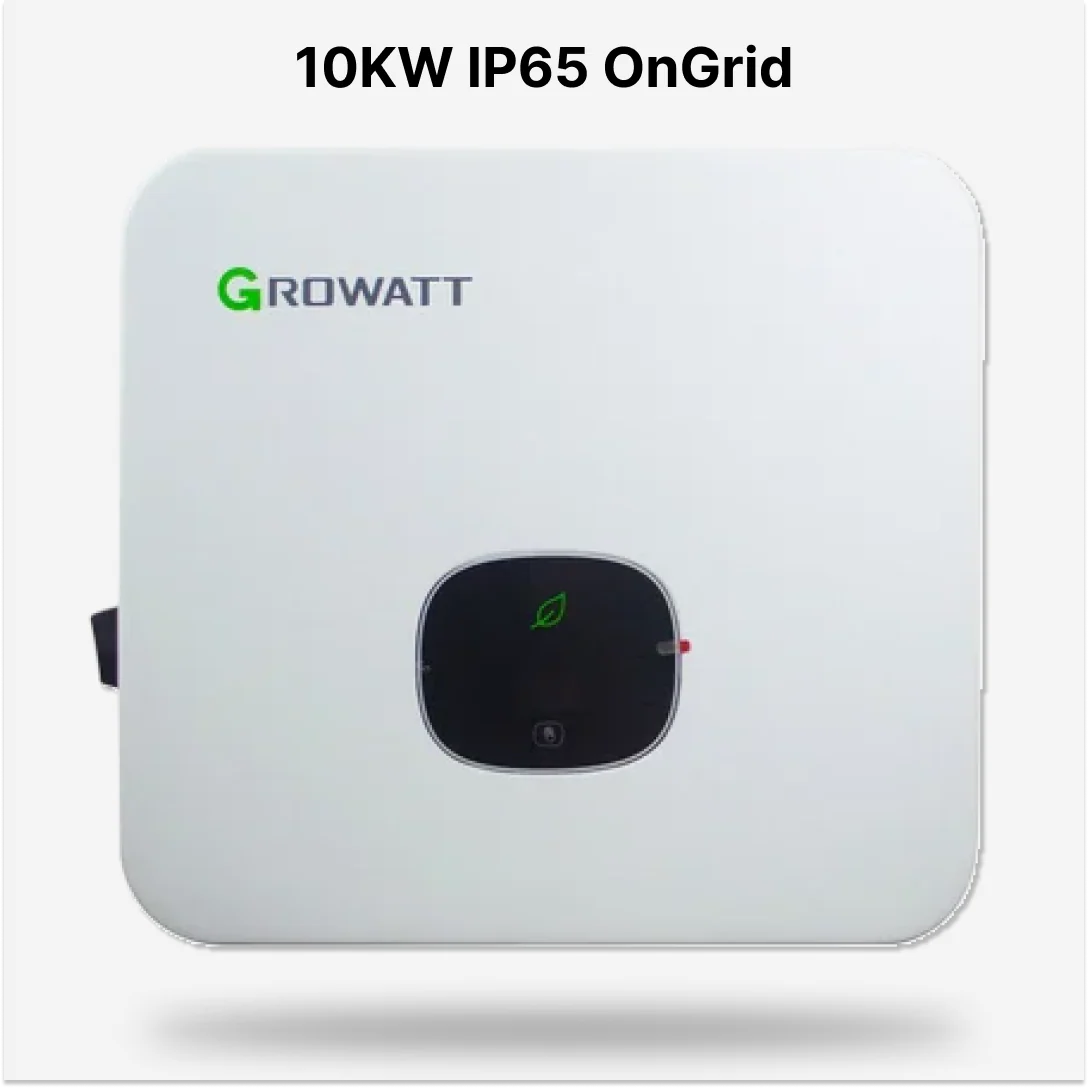

Growatt MOD 10KTL3-X

10kW Three Phase On-Grid Inverter

The Growatt MOD 10KTL3-X is a next-generation three-phase solar inverter designed for residential and small commercial applications. With a sleek design, high efficiency, and robust protection features, it ensures maximum energy yield and long-lasting performance in demanding environments.

Key Highlights

• Exceptional Efficiency:

  • Max. efficiency up to 98.6%

  • European efficiency 98.1%

  • MPPT efficiency 99.9%

• Smart MPPT Technology:
  Equipped with dual MPPT trackers (2/1 strings per MPPT) for optimal energy harvesting from different panel orientations.

• Reliable Build & Safety:

  • Transformerless topology for compact size and reduced weight.

  • Type II SPD protection on both DC and AC sides.

  • DC reverse polarity, AC short-circuit, ground fault, residual current, and insulation monitoring.

  • Optional AFCI (Arc Fault Circuit Interrupter) for enhanced safety.

• Connectivity & Monitoring:

  • Integrated WIFI, RS485, USB, LAN, RF, and GPRS communication.

  • APP + remote monitoring support for real-time performance insights.

• Durable & Weatherproof:

  • IP65 protection rating (dustproof and waterproof).

  • Natural convection cooling for silent, reliable operation.

  • Wide operating temperature range from –25°C to +60°C.

  • Nighttime power consumption <1W.

Technical Overview
