GROWATT 15KW OnGrid Solar Inverter

DOWNLOAD PRODUCT DATASHEET

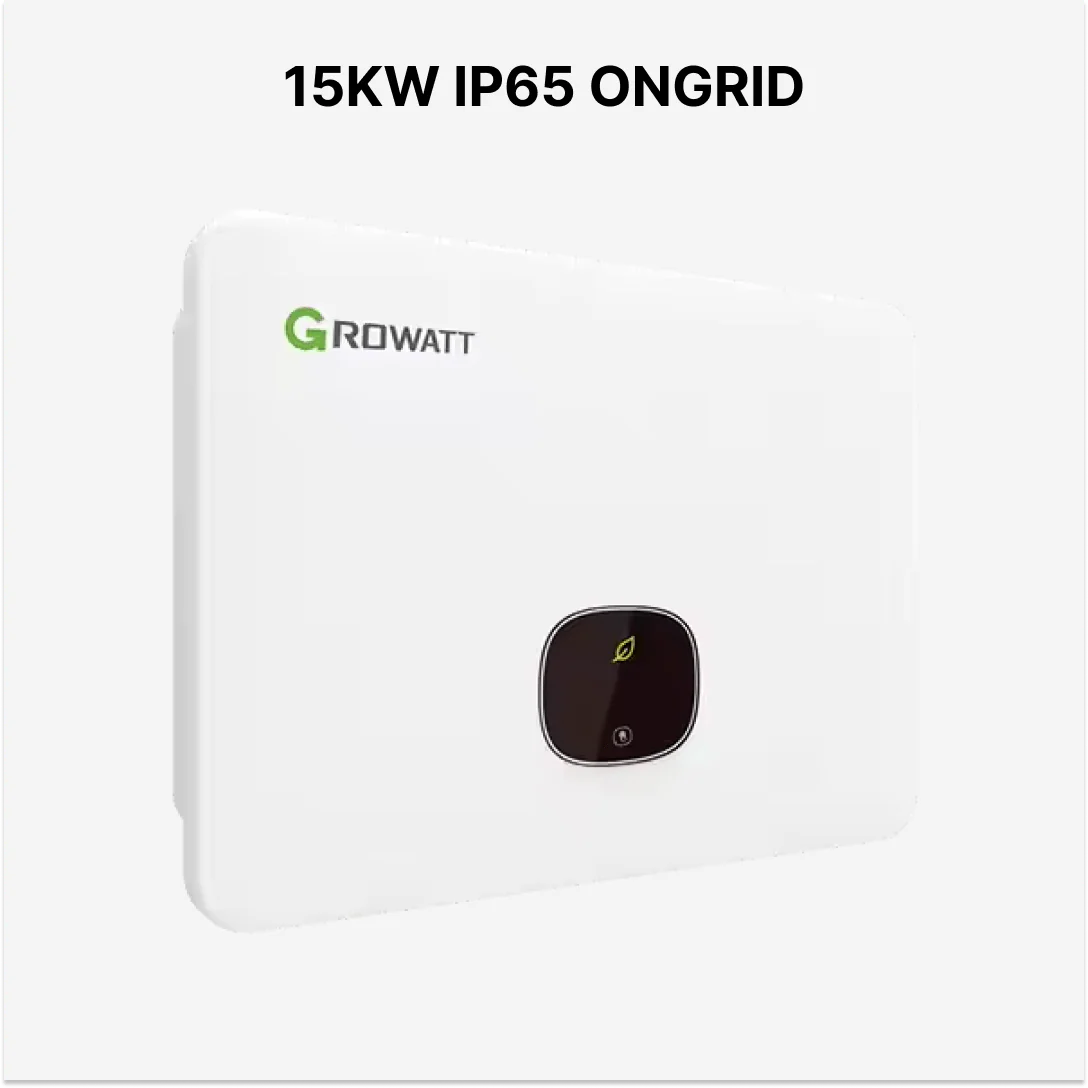

Growatt MID 15KTL3-XH

15kW Three Phase Hybrid On-Grid Inverter

The Growatt MID 15KTL3-XH is a high-performance three-phase inverter designed for residential and commercial solar systems. With advanced safety features, flexible connectivity, and exceptional efficiency, it delivers reliable power conversion for large-scale installations.

Key Features

• Powerful Output

  • AC nominal power: 15,000W

  • Max. apparent power: 16,500VA

  • Max. output current: 25A

  • Adjustable power factor (0.8 leading to 0.8 lagging)

  • THDi <3% for clean energy supply

• High DC Capacity

  • Supports up to 30,000W PV input

  • Max. DC voltage: 1100V

  • Wide MPPT range: 160V – 1000V

  • Dual MPPT trackers with 2 strings for maximum energy harvesting

• Outstanding Efficiency & Cooling

  • Max. efficiency: 98.75%

  • Smart air cooling system for stable operation in high temperatures

  • Operating temperature range: –25°C to +60°C

• Durability & Safety

  • IP66-rated enclosure (dustproof & waterproof)

  • Integrated Type II surge protection (AC & DC sides)

  • Ground fault, residual current, and short-circuit protection

  • Anti-islanding protection & optional AFCI for arc fault detection

• Smart Connectivity

  • Built-in RS485, WiFi, LAN support

  • Optional GPRS for remote monitoring

  • Seamless integration with Growatt monitoring platforms

Specifications
