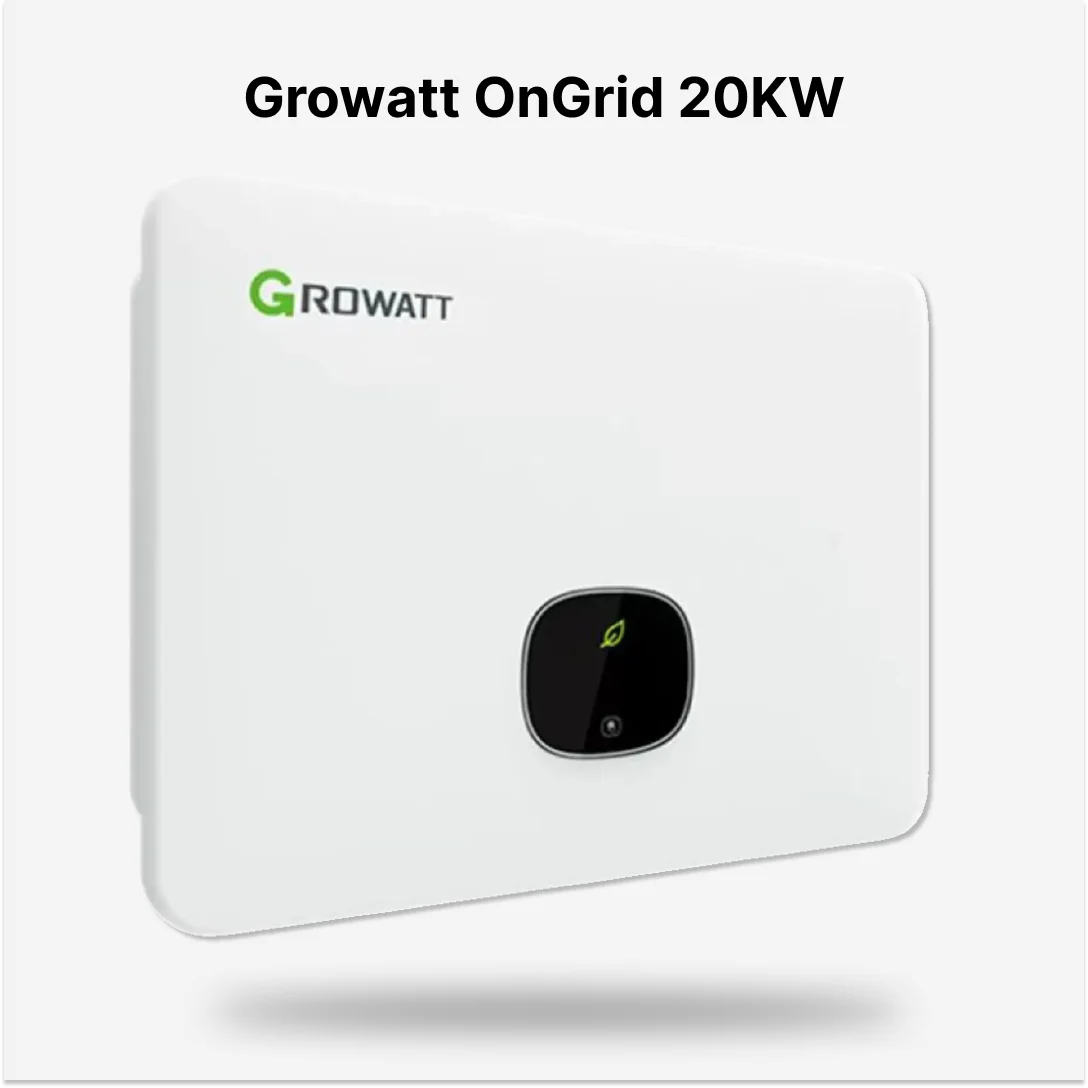

GROWATT 20KW OnGrid Solar Inverter
The Growatt MID 20KTL3-XH combines powerful performance, hybrid flexibility, and robust safety features, making it a top choice for homeowners and businesses looking to maximize solar energy while preparing for future battery storage integration.
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Growatt MID 20KTL3-XH
20kW | Three-Phase | Battery-Ready Hybrid Inverter | IP66 Rated
The Growatt MID 20KTL3-XH is a powerful three-phase hybrid inverter engineered for large-scale residential and small commercial solar systems. With support for up to 40kW PV input and a DC/AC ratio of 2.0, it ensures maximum system efficiency and flexibility. Delivering up to 98.8% conversion efficiency, this inverter is ideal for users who want both high performance and future-ready energy storage capability.
This model is fully battery-ready, supporting the Growatt APX HV Battery System (5–60kWh), and offers up to 30kW charge/discharge capacity depending on system configuration. With advanced protection features, robust IP66 design, and smart monitoring, it’s built for long-term reliability.
Key Features
High Power Output – 20,000W nominal AC power, up to 22,000VA max.
Future-Proof Hybrid Design – Compatible with Growatt APX HV Battery (600–980V).
Flexible Storage – Up to 30kW dual-port charge/discharge capability.
Smart Efficiency – Max. efficiency 98.8% for optimal energy yield.
Dual MPPT Trackers – Flexible PV array management for up to 40,000W DC input.
Advanced Safety – AFCI (optional), Type II SPD (AC/DC), residual current, and anti-islanding protection.
Smart Monitoring – 24/7 consumption monitoring via OLED + LED display, WiFi, App, RS485, USB, LAN, and optional GPRS.
Rugged & Reliable – IP66-rated enclosure, smart air cooling, and wide operating temperature range (–25°C to +60°C).
Ideal Applications
Large residential hybrid solar systems
Small commercial solar + storage projects
Battery-ready net-metering setups
Flexible PV layouts requiring high efficiency and monitoring
Technical Specifications
| Specification | Detail |
|---|---|
| Rated AC Output Power | 20,000 W (20 kW) |
| Maximum Efficiency | ~98.7–98.75 % |
| MPPT Trackers | 2 independent MPPTs |
| DC Input Voltage Range | ~160–200 V – 1,000–1,100 V |
| Max Recommended PV Power | ~25,000–30,000 W |
| AC Output Voltage | 400 V (three-phase) |
| Protection Degree (IP Rating) | IP65 (some models IP66) |
| Cooling Method | Smart Air / Natural Convection Cooling |
| Operating Temperature Range | ~ –25 °C to +60 °C |
| Dimensions | ~525 × 395 × 222 mm |
| Weight | ~23–45 kg (varies between models) |
| Warranty | ~5–10 years depending on vendor / model |
