GROWATT 30KW OnGrid Solar Inverter

DOWNLOAD PRODUCT DATASHEET

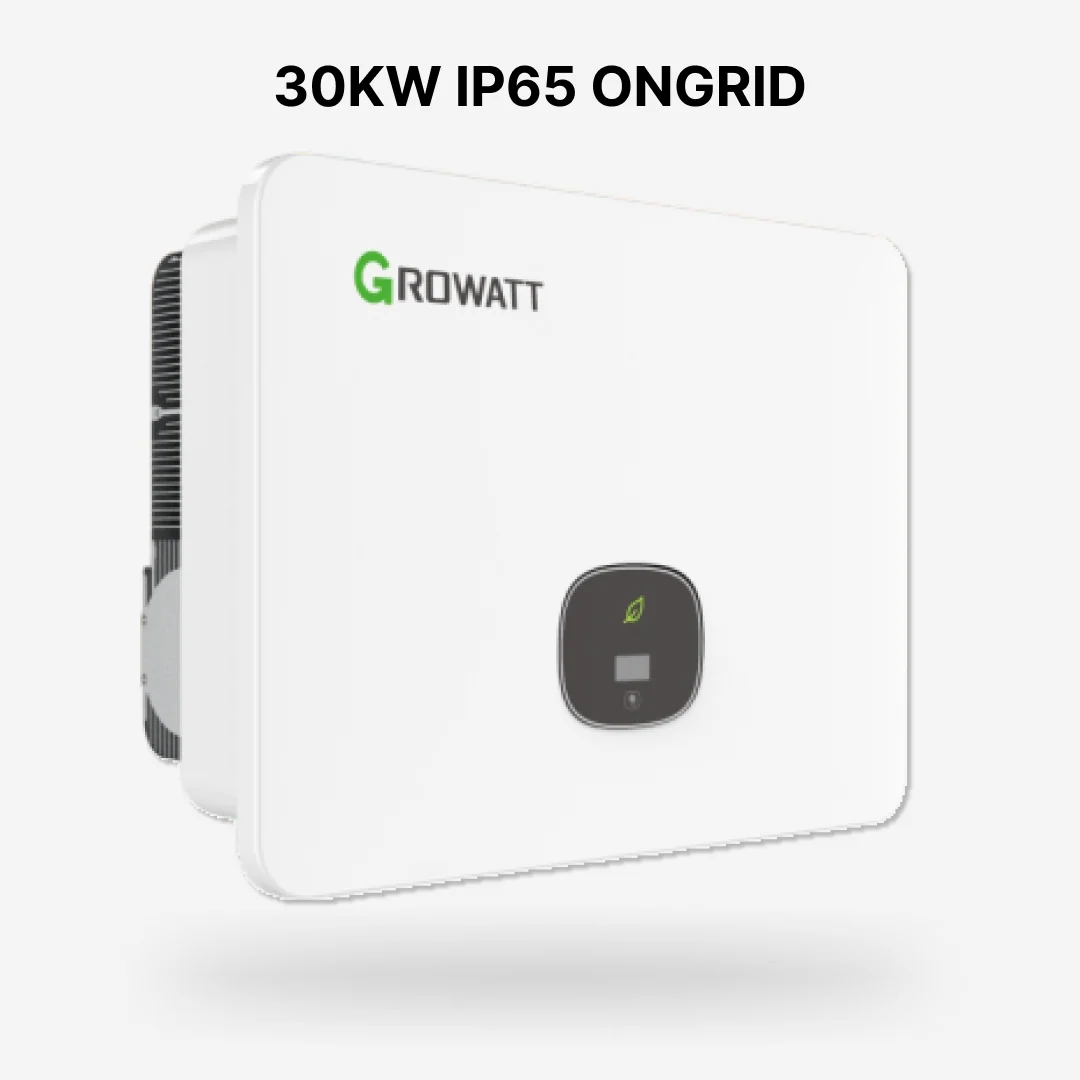

Growatt MID 30KTL3-X

30kW Three-Phase On-Grid Inverter for Commercial Solar Projects

The Growatt MID 30KTL3-X is a reliable, high-efficiency three-phase inverter designed for small-to-medium commercial and industrial solar installations. Delivering 30kW nominal AC output with support for up to 45kW PV input, this inverter provides exceptional performance, durability, and flexibility for diverse solar system designs.

With 3 independent MPPT trackers and up to 2 strings per tracker, it ensures optimal energy harvesting even in installations with multiple orientations or partial shading. Engineered with IP66 protection and smart air cooling, the inverter is built for long-lasting outdoor use, while advanced connectivity and monitoring features allow for seamless system management.

Key Features

• High Efficiency – Up to 98.8% max efficiency, 98.5% European efficiency.

• 3 MPPT Trackers – Flexible solar array configuration for maximum yield.

• Robust PV Handling – Supports up to 45,000W PV input with 1100V max. DC voltage.

• Comprehensive Protection – Type II SPD (AC/DC), optional AFCI, residual current, ground fault, reverse polarity, and anti-islanding protection.

• Smart Monitoring – MPPT curve scanning, string monitoring, and remote diagnostics.

• Connectivity Options – RS485, USB, WiFi, GPRS, RF, and LAN with OLED + LED display and mobile App support.

• Durable & Weatherproof – IP66 outdoor-rated enclosure, –25°C to +60°C operating range.

• Compact Design – Lightweight (29.5kg) with easy installation.

Ideal Applications

• Commercial rooftop installations

• Small-to-medium industrial solar systems

• Grid-connected net metering projects

• Multi-MPPT system layouts

Technical Specifications
