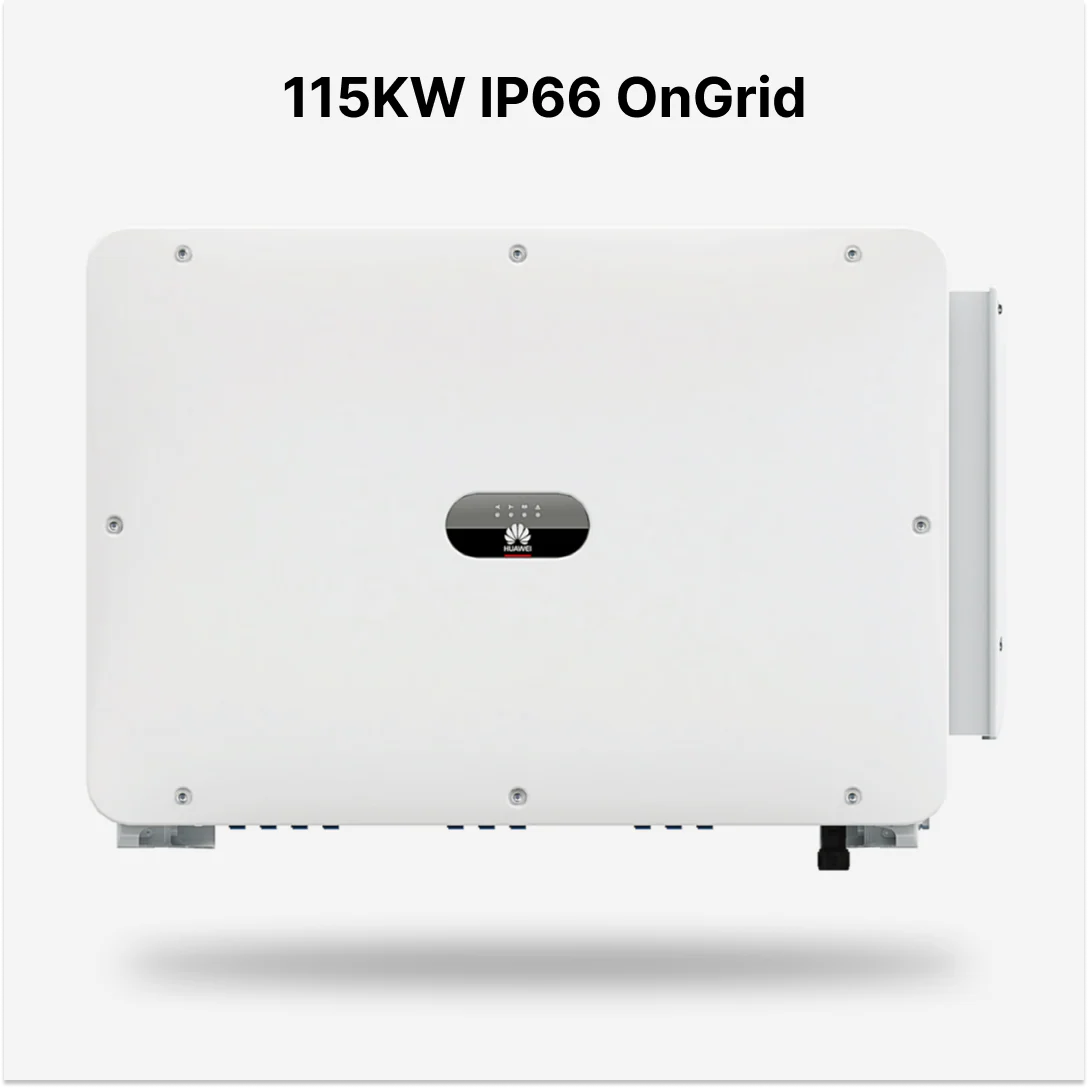

Huawei 115KW IP66 OnGrid Solar Inverter
A high-efficiency (98.8%) three-phase solar inverter designed for large-scale installations. Features compact, lightweight design, IP66 protection, string-level monitoring, and fuse-free DC/AC surge protection for safe, reliable, and low-maintenance operation.
₨1,420,000.00
100 in stock
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Huawei SUN2000-115KTL-M2 Three-Phase Solar Inverter
The Huawei SUN2000-115KTL-M2 is a high-performance three-phase solar inverter engineered for large-scale solar installations. Combining compact, lightweight design with advanced safety and monitoring features, it delivers reliable and efficient energy conversion for demanding solar projects.
With a maximum efficiency of 98.8%, this transformerless inverter ensures optimal energy harvest while minimizing losses. Its IP66-rated enclosure provides protection against dust and water, making it suitable for harsh outdoor environments. Safety is enhanced through residual current protection, surge arresters for DC and AC, and a fuse-free design that reduces maintenance requirements.
For intelligent system management, the inverter features string-level monitoring, smart I-V curve diagnosis, and MBUS support, allowing operators to optimize performance and quickly identify any issues. Additional benefits include low standby power consumption (<3.5W) and an operating temperature range of -25°C to +60°C, ensuring reliability in diverse conditions.
Key Benefits:
High efficiency (up to 98.8%) for maximum energy yield.
Compact and lightweight design for easy installation.
IP66-rated protection for durability in outdoor environments.
Advanced monitoring and management with string-level and smart diagnostics.
Fuse-free design with DC/AC surge protection for safety and low maintenance.
Low standby energy consumption for cost-effective operation.
The Huawei SUN2000-115KTL-M2 is ideal for commercial and utility-scale solar projects, offering efficiency, durability, and intelligent energy management in a single, reliable package.
Technical Details:
| Specification | Details |
|---|---|
| Model | SUN2000-115KTL-M2 |
| Rated AC Output Power | 115 kW |
| Maximum Apparent Power | 125 kVA |
| Max Efficiency | ~98.6% (400 V) / ~98.8% (480 V) |
| MPPT Trackers | 10 |
| DC Strings | 20 |
| DC Input Voltage Range | 200 – 1,100 V |
| Rated DC Input Voltage | 600 V (400 V AC) / 720 V (480 V AC) |
| Max Input Current per MPPT | 30 A |
| AC Output Voltage | 400 V / 480 V (Three-phase) |
| Nominal AC Output Current | 166 A (400 V) / 138 A (480 V) |
| Max AC Output Current | 182 A (400 V) / 152 A (480 V) |
| Protection Rating | IP66, DC & AC Surge Protection (Type II), Anti-PID, DC Overcurrent |
| Operating Temperature | –30 °C to +60 °C |
| Dimensions (W × H × D) | 1,035 × 700 × 365 mm |
| Weight | ~93 kg |
| Max Operating Altitude | 4,000 m |
| Communication | RS485, optional WiFi/4G, FusionSolar monitoring |
| Warranty | 5 years (extendable in some regions) |
