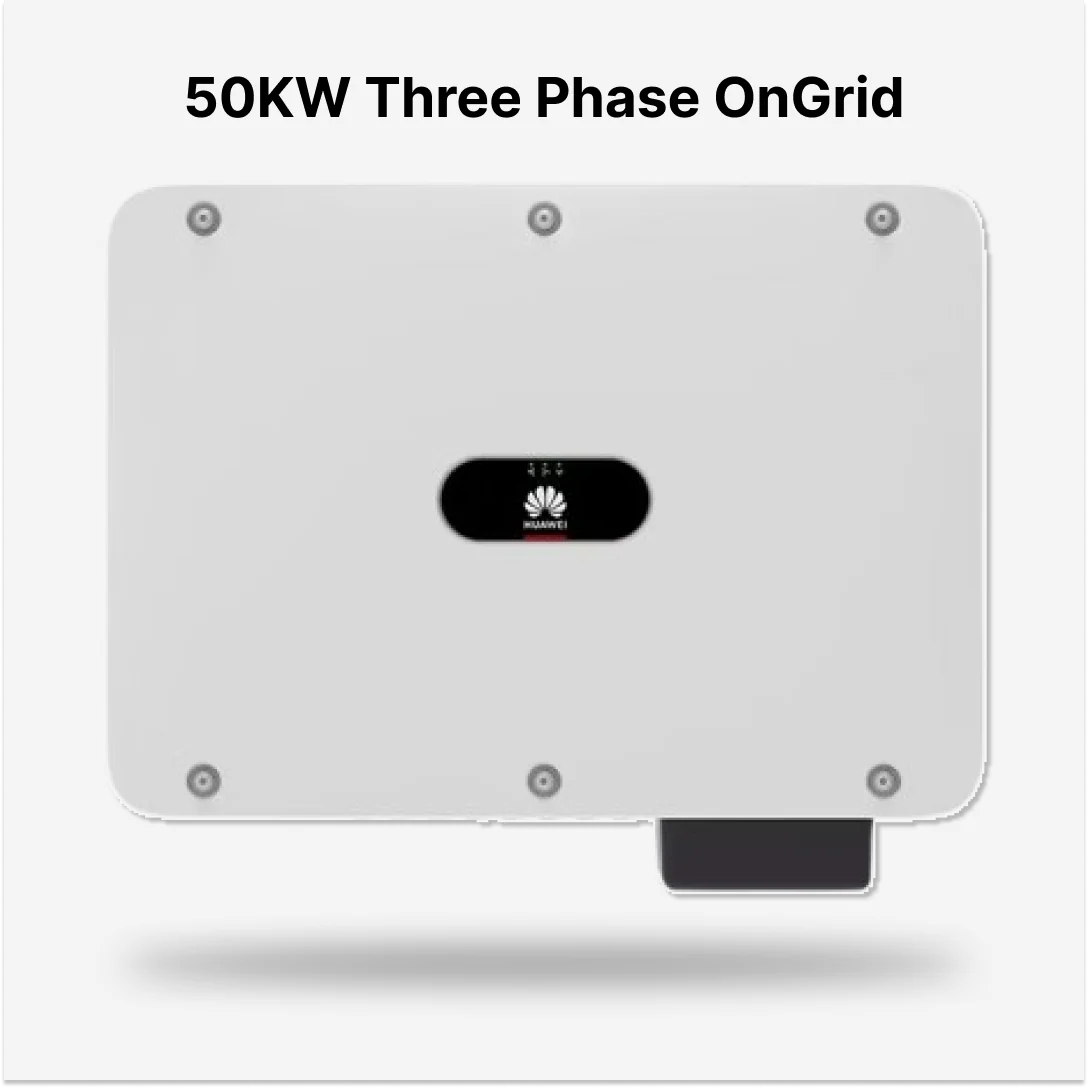

Huawei 50KW On Grid Solar Inverter
A high-efficiency (98.5%) three-phase on-grid inverter designed for large-scale solar projects. With dual MPPT flexibility, IP66 protection, and smart FusionSolar monitoring, it delivers powerful, reliable, and intelligent energy management.
₨735,000.00
100 in stock
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
DOWNLOAD PRODUCT DATASHEET
The Huawei SUN2000-50KTL-M3 is a 50 kW three-phase on-grid solar inverter, designed to cater to large-scale solar installations, whether residential or commercial. Here’s a summary of its key features and specifications:
Key Features:
- Efficiency: High efficiency up to 98.5%, ensuring excellent performance.
- Max. Input Voltage: 1,100 V for robust energy capture.
- MPPT Flexibility: Versatile configuration with maximum current per MPPT at 30 A.
- Rated Power: 50,000 W rated AC active power, with a maximum apparent power of 55,000 VA.
- Start Voltage: Begins operation from 200 V.
- Protection: Features IP66 protection, making it dust-tight and resistant to powerful water jets—ideal for outdoor environments.
- Smart Monitoring: Includes FusionSolar monitoring, with WLAN/Ethernet connectivity via an optional Smart Dongle.
- Current Protection: Max short circuit current per MPPT is 40 A, ensuring safety under varying loads.
Technical Specifications:
| Specification | Value |
|---|---|
| Model | SUN2000-50KTL-M3 |
| Rated AC Power | 50 kW |
| Max DC Input Voltage | ~1,100 V |
| MPPT Channels | 4 |
| Max Efficiency | ~98.6–98.8% |
| Protection Rating | IP66 |
| Operating Temperature Range | ~-25 °C → +60 °C |
| Phase | Three-Phase (380/400/415 V) |
| Weight | ~49 kg |
| Dimensions | ~640 × 530 × 270 mm |
