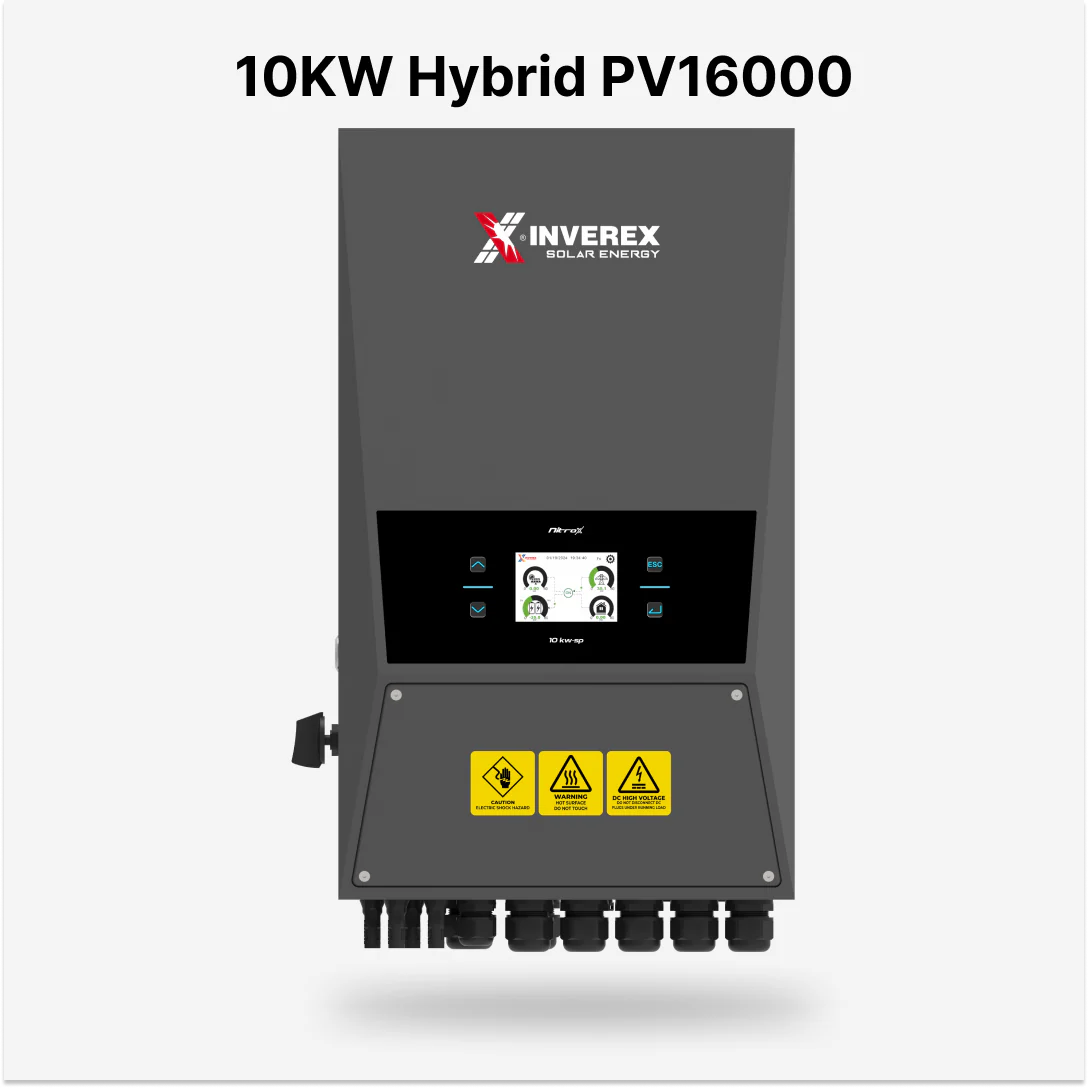

Inverex Nitrox 10KW Hybrid Solar Inverter

Vendor: Inverex

Availability: In stock

Product Type: Solar Inverter

A high-performance hybrid inverter with dual MPPT, 10KW continuous output, and up to 16,000W PV input. Features scalable parallel operation, advanced battery scheduling, generator compatibility, and a smart IP65 LCD for efficient, reliable, and quiet solar energy management.

₨490,000.00

100 in stock

Shipping

You have to pay Partial Payment for order confirmation

Estimated Shipping Time: 24 to 72 Hours

100% Original & Official Product

Inverex Nitrox 10KW Hybrid Solar Inverter

DOWNLOAD PRODUCT DATASHEET

Inverex NitroX 10KW SP Hybrid Inverter

High-Performance Hybrid Inverter for Advanced Solar Systems

The Inverex NitroX 10KW SP Hybrid Inverter is designed for serious energy users looking to maximize their solar investment. Built with robust components and smart energy management features, it supports large residential, commercial, and hybrid applications with efficiency and reliability.

Key Features:

Ultra-High PV Capacity: Supports up to 16,000W PV input with a wide operating voltage range of 150V–425V DC
Dual MPPT Technology: Two independent MPPTs with 34A+34A input current handling provide maximum energy harvesting from different PV arrays
High Charge/Discharge Rate: 210A for both charging and discharging, ensuring faster battery cycles and higher power delivery
Scalable System: Parallel operation capability up to 16 units for expanding system capacity
Powerful Output: Delivers 10KW continuous power with 11KVA peak for surge loads
Smart Display: 4.3” color LCD with an IP65 outdoor-rated interface
Flexible Integration: Supports AC coupling for retrofitting existing on-grid systems
Advanced Battery Scheduling: Configurable for 6 different charging/discharging time slots
Generator Compatibility: Works seamlessly with diesel generators for extended backup
High Conversion Efficiency: Inverter efficiency up to 97.6%, MPPT efficiency >99%, DC ripple <0.5%
Wide Environmental Range: Operates from -40°C to +60°C, suitable for diverse climate zones
Low Noise: Operates quietly with noise levels below 30 dB

Protection & Monitoring:

Built-in protections: RCD, surge protection, reverse polarity, thermal overload, and more
Communication ports: RS485, RS232, CAN
Optional remote monitoring via WiFi, Bluetooth, LAN, or 4G connectivity

Technical Details:

Parameter	Specification
Model	INVEREX Hybrid 10KW SP-5G
Battery Type	Lead-acid / Lithium-ion
Battery Voltage Range (V)	40–60
Max. Charging Current (A)	Self-adaptive to BMS
Max. Discharging Current (A)	Self-adaptive to BMS
Number of Battery Inputs	1
Charging Strategy	Li-ion self-adaptive to BMS
Number of MPP Trackers / Strings	2 / 2+2
Max. PV Input Power (W)	16,000
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150–425
Rated PV Input Voltage (V)	370
Max. PV Input Current (A)	48
Max. Input Short-Circuit Current (A)	48
Rated AC Power (W)	10,000
Max. AC Apparent Power (VA)	11,000
Rated AC Current (A)	50 / 47.9
Max. AC Current (A)	45.5 / 43.5
Max. Continuous AC Passthrough (A)	50
Peak Power (Off-grid, 10s)	2 × rated power
Power Factor Range	0.8 leading – 0.8 lagging
Max Efficiency	97.6%
European Efficiency	96.5%
MPPT Efficiency	>99%
THDi	<3%
DC Injection Current	<0.5%
Protection Features	DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, DC monitoring, islanding, residual current, surge protection
Surge Protection Level	Type II (DC), Type II (AC)
Operating Temperature (°C)	-40 to +60 (derating >45°C)
Humidity	0–100%
Altitude	≤2000 m
Noise (dB)	<30
Ingress Protection	IP65
Cooling Type	Intelligent Air Cooling
Topology	Non-Isolated
Overvoltage Category	OVC II (DC), OVC III (AC)
Cabinet Size (WxHxD mm)	343 × 580 × 258
Weight (kg)	25.2
Warranty	5 years (site dependent)
Grid Connection Form	L + N + PE
Rated AC Voltage / Range (V)	220 / 230, 0.85Un–1.1Un
Grid Frequency / Range (Hz)	50 (45–55), 60 (55–65)
Monitoring Interface	GPRS / WiFi / Bluetooth / 4G / LAN (optional), RS485 / RS232 / CAN
