Knox Krypton 8.5kw PV12002 IP21 Hybrid Solar Inverter

DOWNLOAD PRODUCT DATASHEET

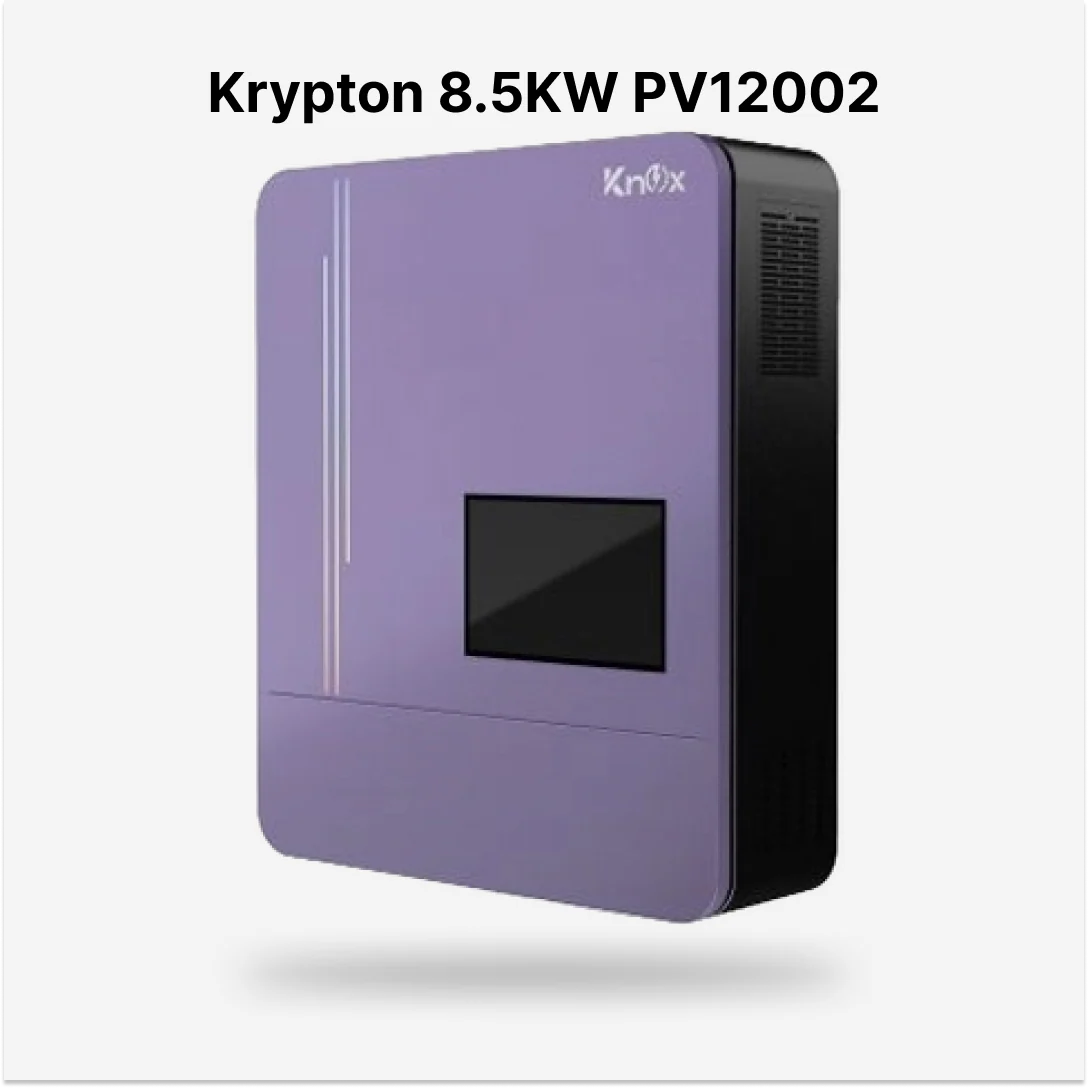

Knox Krypton 12002 | 8.5kW Hybrid Solar Inverter

The Knox Krypton 12002 is a next-generation 8.5kW hybrid solar inverter designed for large homes and commercial spaces that require reliable, flexible, and intelligent energy control. Built with dual MPPT support, it optimizes energy harvesting across two independent PV arrays, while its batteryless operation ensures cost-effective flexibility with or without battery backup.

Equipped with dual AC outputs, the Krypton 12002 provides continuous power to priority loads while intelligently managing heavy loads during low solar or battery availability. The wide PV input range (90–450VDC) and 30A per MPPT channel allow full compatibility with modern high-capacity solar panels.

Its sleek design features a 7” touchscreen HMI display, RGB status lights, and built-in Wi-Fi, giving users real-time monitoring and smart control via Android/iOS apps. Advanced communication ports (RS485, CAN-BUS, RS232) ensure seamless integration with BMS, smart energy systems, and generators, while parallel support (up to 6 units) enables system scalability for higher capacities.

Durability is built-in with an anti-dust kit and a replaceable cooling fan, making maintenance simple and extending system life. With USB OTG support and built-in DC output ports, this inverter is a future-ready solution for modern energy users.

Key Highlights

• Rated Power: 8.5kW hybrid inverter

• Dual MPPT Inputs: Independent tracking for two PV arrays

• Batteryless Flexibility: Operates on solar + grid, battery optional

• Dual Outputs: Priority load always on, heavy load intelligently managed

• Smart Monitoring: Built-in Wi-Fi + mobile app + 7” touchscreen HMI

• User-Friendly: RGB status lights + USB OTG for updates

• Extra Convenience: DC output for LEDs, routers, and small devices

• Advanced Communication: RS485, CAN-BUS, RS232 for BMS & generator compatibility

• Parallel Ready: Connect up to 6 units for larger setups

• Durability: Anti-dust kit + tool-free fan replacement

Key Specification
