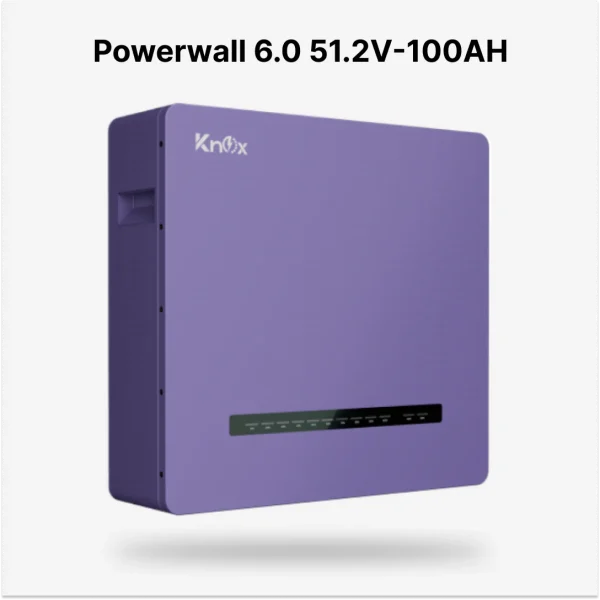

Powerwall 6.0 | LIO 5.20-IP20 Lithium-ion Battery

5.12kWh Wall-Mounted LiFePO₄ Energy Storage Solution
The Powerwall 6.0 | LIO 5.20-IP20 is a reliable wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential and small commercial energy storage systems. With a 5.12kWh usable capacity (51.2V, 100Ah), it provides dependable performance for on-grid, off-grid, and hybrid setups.

Built with A-grade prismatic LiFePO₄ cells, this battery offers 6000+ cycles at 80% DoD, superior thermal stability, and long operational life. A smart Battery Management System (BMS) with integrated protections—including overcharge, over-discharge, overcurrent, temperature, and short-circuit safeguards—ensures safe and efficient operation.

The LIO 5.20-IP20 features a low-power LED display for quick status monitoring, robust metal housing for improved heat dissipation, and universal inverter communication (RS485, RS232, CAN). For larger energy demands, it supports parallel expansion of up to 8 units.

With its slim, wall-mounted design, silent operation, and IP20-rated enclosure, the Powerwall 6.0 delivers a durable, scalable, and user-friendly solution for solar energy storage and backup power.

Key Features

• Usable Capacity: 5.12kWh (51.2V, 100Ah)

• Cell Chemistry: A-grade Prismatic LiFePO₄

• Cycle Life: 6000+ cycles @ 80% DoD (25°C)

• Charge/Discharge: 100A continuous | 120A peak (2s)

• Smart BMS Protections: Overcharge, undervoltage, over/low temperature, overcurrent, short-circuit

• Cell Balancing: Integrated for extended battery life

• Parallel Expansion: Up to 8 packs

• Display: Low-power LED with long-range visibility

• Enclosure: Metal housing, IP20 rated

Technical Specifications
