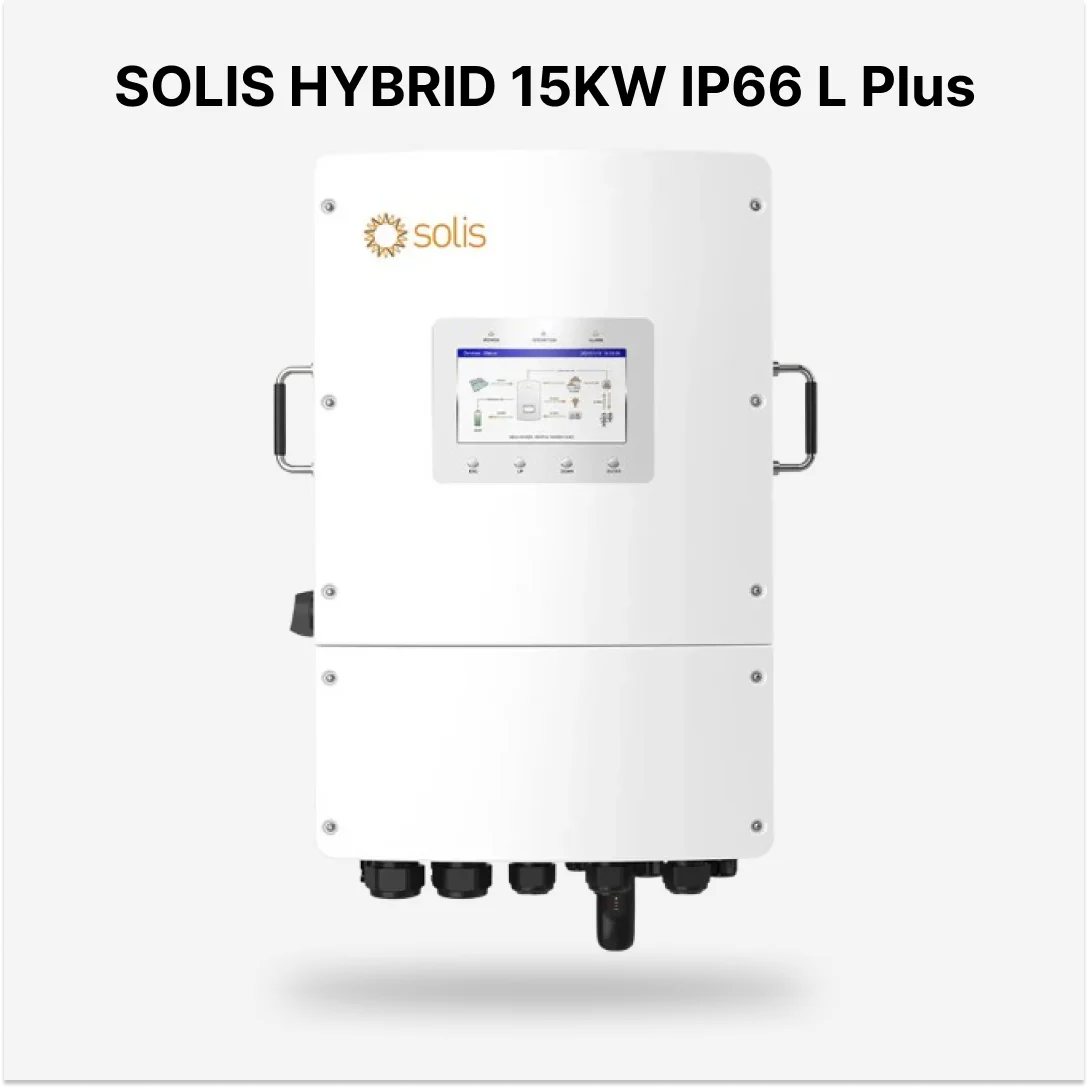

Solis 15KW IP66 Hybrid Solar Inverter
The Solis 15kW 3 Phase LV Hybrid Solar Inverter delivers 15kW high-capacity output with dual MPPT, 97% efficiency, wide voltage range, robust protections, and parallel scalability—ideal for large residential, commercial, and industrial solar systems.
₨625,000.00
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Solis 15kW 3 Phase LV | Hybrid Solar Inverter
The Solis 15kW 3 Phase LV Hybrid Solar Inverter is a powerful, efficient, and scalable solution designed for large-scale residential, commercial, and industrial solar systems. With a wide MPPT voltage range (200V–800V) and dual MPPT trackers, it ensures maximum solar energy harvesting and reliable system performance across diverse PV configurations.
Delivering up to 97% efficiency, the inverter reduces operational costs while providing stable and clean power. Its robust safety features—including reverse polarity, short-circuit, surge, grid monitoring, and temperature protection—make it a dependable choice for critical applications.
The Export Power Manager (EPM) feature enhances grid compatibility by controlling and limiting export to the utility grid. With parallel operation support up to 6MW, the system is fully scalable for larger installations, making it future-ready for growing energy demands.
Equipped with WiFi-enabled communication (optional accessory), the Solis 15kW Hybrid Inverter allows remote monitoring and intelligent energy management, ensuring convenience and long-term efficiency.
Key Highlights
Rated Power: 15kW hybrid inverter with 18kW PV input capacity
High Efficiency: Up to 97% for maximum energy conversion
Dual MPPT Design: Accurate tracking to minimize mismatch and distortion
Wide MPPT Range: 200V–800V for flexible PV system design
Robust Protection: Reverse polarity, short-circuit, surge, and thermal safeguards
Smart Grid Support: Export Power Manager (EPM) for optimized grid interaction
Parallel Operation: Scalable up to 6MW for large installations
Connectivity: WiFi-enabled monitoring for real-time control
Ideal Applications
✔ Large Residential Properties – Reliable hybrid power for heavy household loads
✔ Commercial Buildings – Cost-effective and efficient solar integration
✔ Industrial Setups – Stable energy supply for factories and operations
✔ Solar Farms – Scalable hybrid systems with grid support
Key Specifications
| Specification | Detail |
|---|---|
| Model | Solis S6-EH3P15K-H (Three-Phase, Hybrid) |
| Rated AC Output Power | 15,000 W (15 kW) |
| Max Solar (PV) Input Power | ~24 – 30 kW |
| Max DC Input Voltage | 1,000 V |
| MPPT Voltage Range | ~200 – 850 V |
| Number of MPPT Inputs | 2 or 4 (depending on variant) |
| Max DC Input Current | ~4 × 20 A |
| Max Short-Circuit Current (DC) | ~4 × 30 A |
| Battery Voltage Range | ~120 – 800 V (Lithium, etc.) |
| Battery Charge / Discharge Power | 15 kW |
| Battery Charge / Discharge Current | ~50 A |
| Output Voltage (Grid) | 380 / 400 V (Three-Phase) |
| Frequency | 50 / 60 Hz |
| THD (Total Harmonic Distortion) | < 3% |
| Power Factor | ≥ 0.99 (supports leading/lagging) |
| Protection / Ingress Rating | IP66 (dust & water resistant) |
| Operating Temperature Range | –25 °C to +60 °C |
| Cooling Method | Natural convection + smart fan |
| Dimensions (W × H × D) | ~563 × 546 × 250 mm |
| Weight | ~35.2 kg |
| Standards / Safety | Anti-islanding, over/under voltage, DC reverse polarity, surge protection, etc. |
