Solis 6KW IP66 L Plus Model Hybrid Inverter

DOWNLOAD PRODUCT DATASHEET

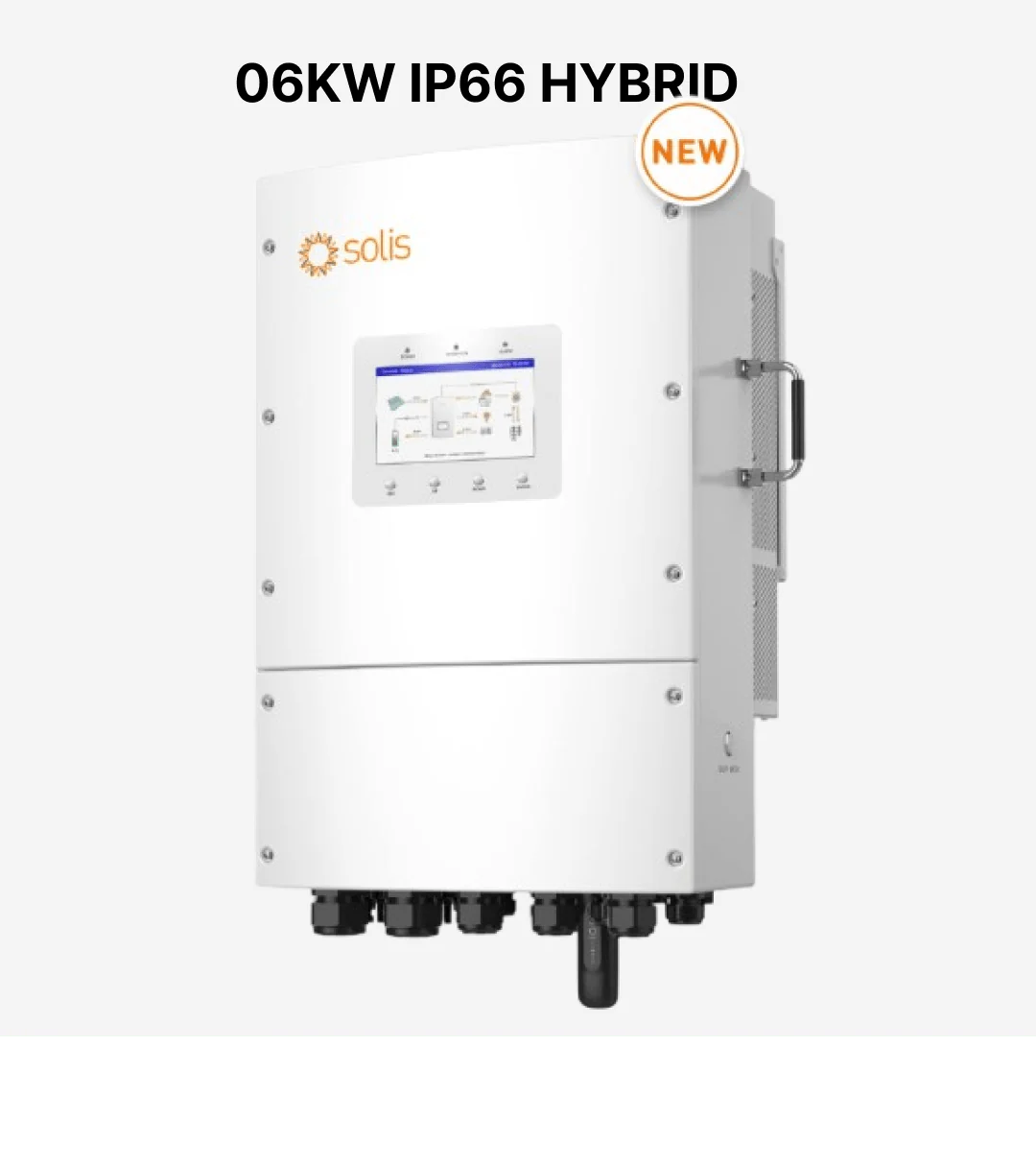

Solis S6-EH1P6K-L-PLUS | 6kW Hybrid Solar Inverter

The Solis S6-EH1P6K-L-PLUS is a versatile and efficient 6kW hybrid inverter designed for both residential and commercial solar applications. Built with advanced hybrid technology, it supports solar, grid, generator, and battery integration, ensuring seamless power management and uninterrupted performance.

With a 12kW maximum PV array size and advanced MPPT tracking (90–435V), the inverter maximizes solar utilization for medium-sized systems. It features a high surge power capacity (200% for 10 seconds), making it reliable for heavy-load appliances and backup needs. Its 135A charge/discharge current allows efficient battery management, compatible with both Li-ion and lead-acid storage solutions.

The IP66-rated enclosure guarantees durability in harsh weather, while the 7” LCD display with Bluetooth, Wi-Fi, and mobile app monitoring ensures convenience and smart energy control. Scalable up to 36kW with parallel support, the Solis S6-EH1P6K-L-PLUS is future-ready for expanding energy demands.

Key Highlights

1. Rated Power: 6kW output with 12kW max PV array capacity

2. Hybrid Flexibility: Supports solar, grid, generator & batteries

3. Battery Compatibility: Li-ion & lead-acid with 135A charge/discharge current

4. High Surge Capacity: 200% overload for 10 seconds for critical loads

5. Efficiency: 96.2% max (96.1% EU)

6. Smart Monitoring: 7” LCD + Bluetooth, Wi-Fi, and app-based control

7. Durable Build: IP66 rating for outdoor reliability

8. Scalable: Parallel operation up to 36kW for larger systems

9. Fast Backup Switching: Automatic UPS mode within 10 seconds

Key Specifications
