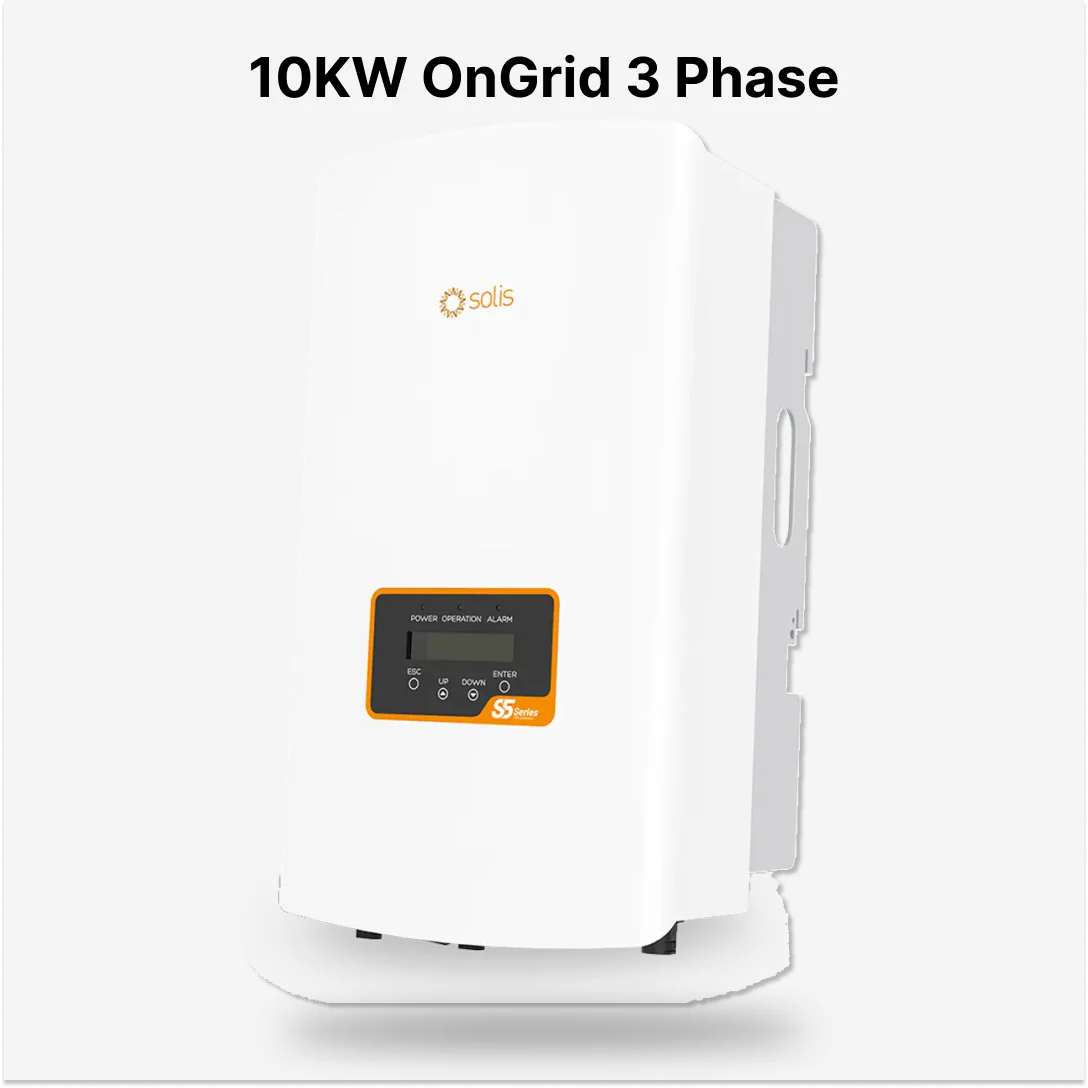

Solis 10kW | On-Grid Solar Inverter

The Solis 10kW On-Grid Solar Inverter is a high-efficiency, durable, and reliable solution designed to maximize energy conversion in residential and commercial solar systems. With a maximum efficiency of 98% and a dual MPPT design, it ensures optimized power harvesting from solar panels under varying conditions.

Operating within a wide MPPT voltage range of 160–500V and featuring a low start-up voltage of 180V, the inverter begins generating power earlier in the day and extends performance hours. Its low harmonic distortion (THDi <1.5%) guarantees clean and grid-compliant energy output.

The Solis 10kW is equipped with multiple layers of protection, including DC reverse polarity, surge, short circuit, grid monitoring, and temperature safeguards, ensuring system safety and long-term reliability. Built with an IP65-rated enclosure, it is fully weatherproof and suitable for outdoor installations.

The integrated Export Power Manager (EPM) makes it easy to control grid exports, while its compact and lightweight design allows simple wall-mounted installation.

Key Highlights

• Rated Power: 10kW, recommended PV capacity up to 12kW

• High Efficiency: Up to 98% energy conversion

• Dual MPPT Design: Optimized power tracking with a precise algorithm

• Wide Voltage Range: 160–500V MPPT, 1000V max input

• Protection Features: Reverse polarity, surge, short circuit, grid, and temperature protection

• Clean Output: THDi <1.5% for stable, grid-compliant energy

• Export Control: Built-in Export Power Manager (EPM)

• Durability: IP65 enclosure for outdoor, all-weather installations

• Compact Build: Lightweight (19.8kg) with easy wall mounting
